What is Dielectric Constant?
The dielectric constant, also known as relative permittivity, is a measure of a material’s ability to store electrical energy in an electric field. Expressed as a dimensionless number, it compares the material’s permittivity to the permittivity of free space. Higher dielectric constants indicate better energy storage and influence signal transmission, capacitance, and impedance in electronic systems.
Why is Dielectric Constant Important?
In electronic and RF applications, materials with specific dielectric constants are crucial for controlling signal speed, loss, and impedance matching. The dielectric constant affects the performance of capacitors, substrates, insulators, and microwave components. Selecting the right ceramic material ensures optimal performance in both high- and low-frequency applications.
What Factors Influence Dielectric Constant in Ceramics?
Frequency of the Applied Electric Field
Material Composition and Crystal Structure
Temperature and Humidity
Density and Porosity of the Ceramic
Phase Transitions and Additives
Applications of Ceramic Materials Based on Dielectric Constant
- RF/Microwave Circuits and Antennas
- Capacitors and Energy Storage Devices
- Substrates for Semiconductor Packaging
- High-Frequency Sensors and Transducers
- Electromagnetic Interference (EMI) Shielding
Top Ceramic Materials Ranked by Dielectric Constant (@1 MHz)
Zirconia (ZrO₂) - CeramaZirc
- Dielectric Constant: 29 @1 MHz
- Key Features: High permittivity, good mechanical strength, thermal and chemical resistance.
- Applications: : Capacitors, insulators, medical and structural electronics.
Alumina Toughened Zirconia (ATZ)
- Dielectric Constant: 25 @1 MHz
- Key Features: Enhanced toughness, moderate permittivity, excellent durability.
- Applications: High-reliability electronic packaging, wear-resistant components.

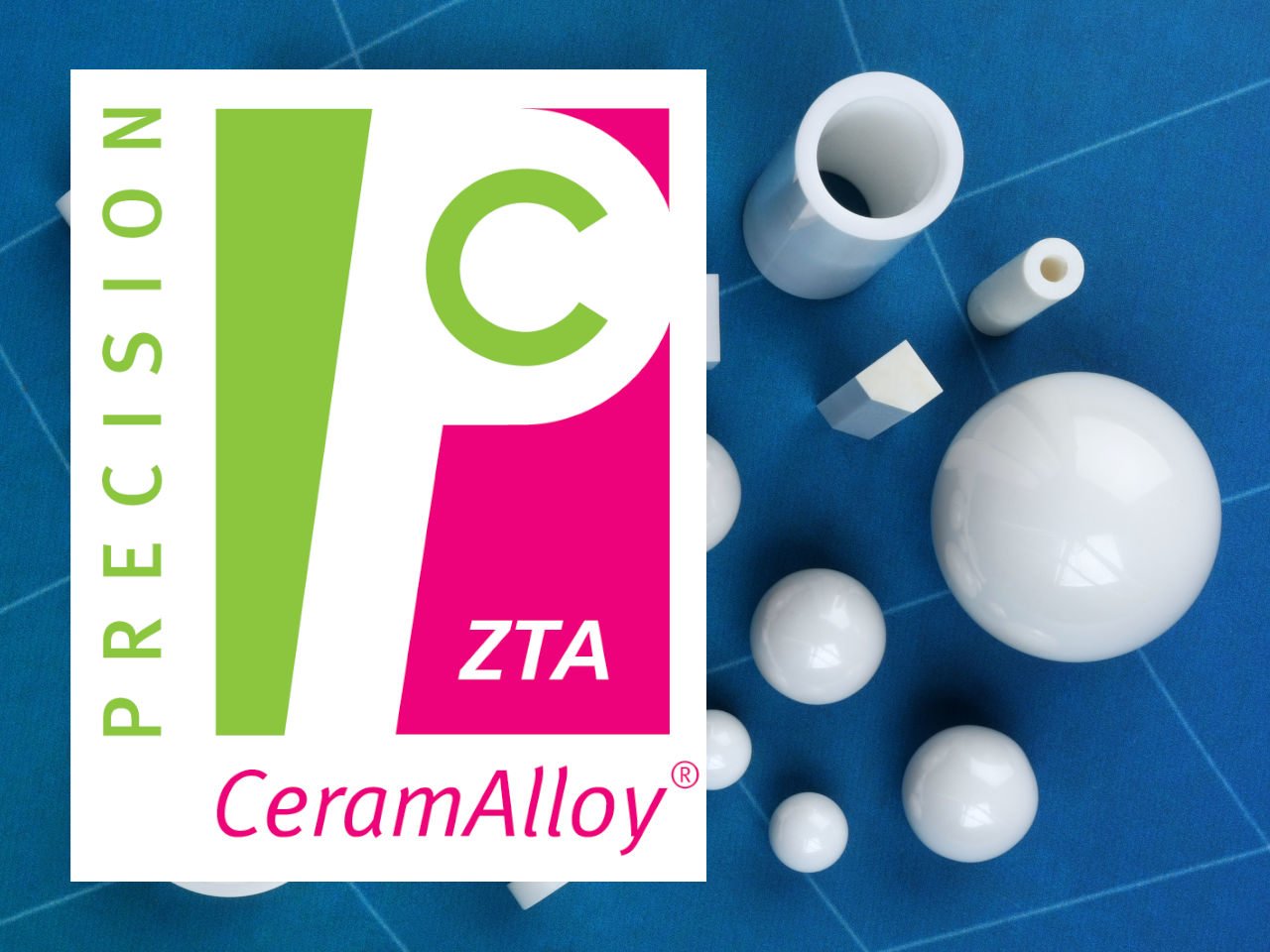

Zirconia Toughened Alumina (ZTA)
- Dielectric Constant: 10 @1 MHz
- Key Features: High strength, corrosion resistance, stable dielectric properties.
- Applications: Electronic substrates, sensors, structural electronics.
Alumina (Al₂O₃) - CeramAlox™
- Dielectric Constant: 9.9 @1 MHz
- Key Features: Excellent insulator, thermally stable, widely available.
- Applications: Substrates, capacitors, and insulators.
Aluminum Nitride (AlN) – CeramAlum™
- Dielectric Constant: 8.8 @1 MHz
- Key Features: Low permittivity, high thermal conductivity, and electrically insulating.
- Applications: Heat sinks, RF packages, and LED technology.
Get Expert Advice on Choosing the Right Ceramic Material
Selecting ceramic materials with the appropriate dielectric constant is essential for tailoring electrical performance in advanced electronic systems. From high-permittivity Zirconia to thermally conductive Aluminum Nitride, these materials offer diverse solutions for demanding engineering challenges. The electrical properties of the ceramic favored for a project will also need to be considered in conjunction with other performance requirements and manufacturability, availability, relative cost etc.
Looking for the best ceramic material for your application? Contact our team for expert recommendations tailored to your needs.
Dielectric Constant Material Comparison
FAQs on Dielectric Constant in Ceramics
-
How does frequency affect dielectric constant?
Dielectric constant typically decreases with increasing frequency. At higher frequencies, dipolar polarization mechanisms cannot respond as efficiently.
-
What is the ideal dielectric constant for RF applications?
Lower dielectric constants (below 10) are generally preferred for high-frequency signal transmission, while higher values are used in capacitive or energy storage applications.
-
How do porosity and density affect dielectric constant?
Higher porosity reduces dielectric constant as air (which has a dielectric constant of ~1) is introduced into the material, reducing overall permittivity.
-
Can dielectric constant be tailored in ceramic materials?
Yes, through compositional modifications, sintering conditions, and additives, manufacturers can tune dielectric properties to meet application needs.
Related Properties
Volume Resistivity
Volume resistivity is used to measure how strongly a material can oppose or resist the flow of electric current. Materials are categorized as having either high or low volume resistivity.
Dielectric Strength
Dielectric strength, also known as breakdown voltage, refers to the maximum electric field a material can endure without electrical breakdown. Measured in kilovolts per millimeter (kV/mm), it is a critical property for insulators used in high-voltage environments.
Maximum Temperature
Advanced ceramics are well known for their heat withstanding properties in which they only start to melt at temperatures around 2000℃. In comparison to more common ceramic materials such as tile or brick, they start to melt at temperatures around 650℃.
